The integration of electro-conductive materials via liquid silicone rubber injection molding is fundamentally changing wearable architecture by replacing copper wires and rigid PCBs with flexible, conductive silicone pathways. This shift allows for seamless bio-integration, enhanced comfort, and significant miniaturization. The following guide details the engineering principles and manufacturing processes necessary to achieve this transition from traditional assembly to integrated molding solutions.
Engineering Conductive LSR for Integrated Wearable Electronics
Integrating conductive fillers into biocompatible silicone requires precise control over viscosity and percolation thresholds. This section explores the material formulation and machine modifications needed to effectively replace rigid circuits with flexible, molded pathways in next-generation medical devices.

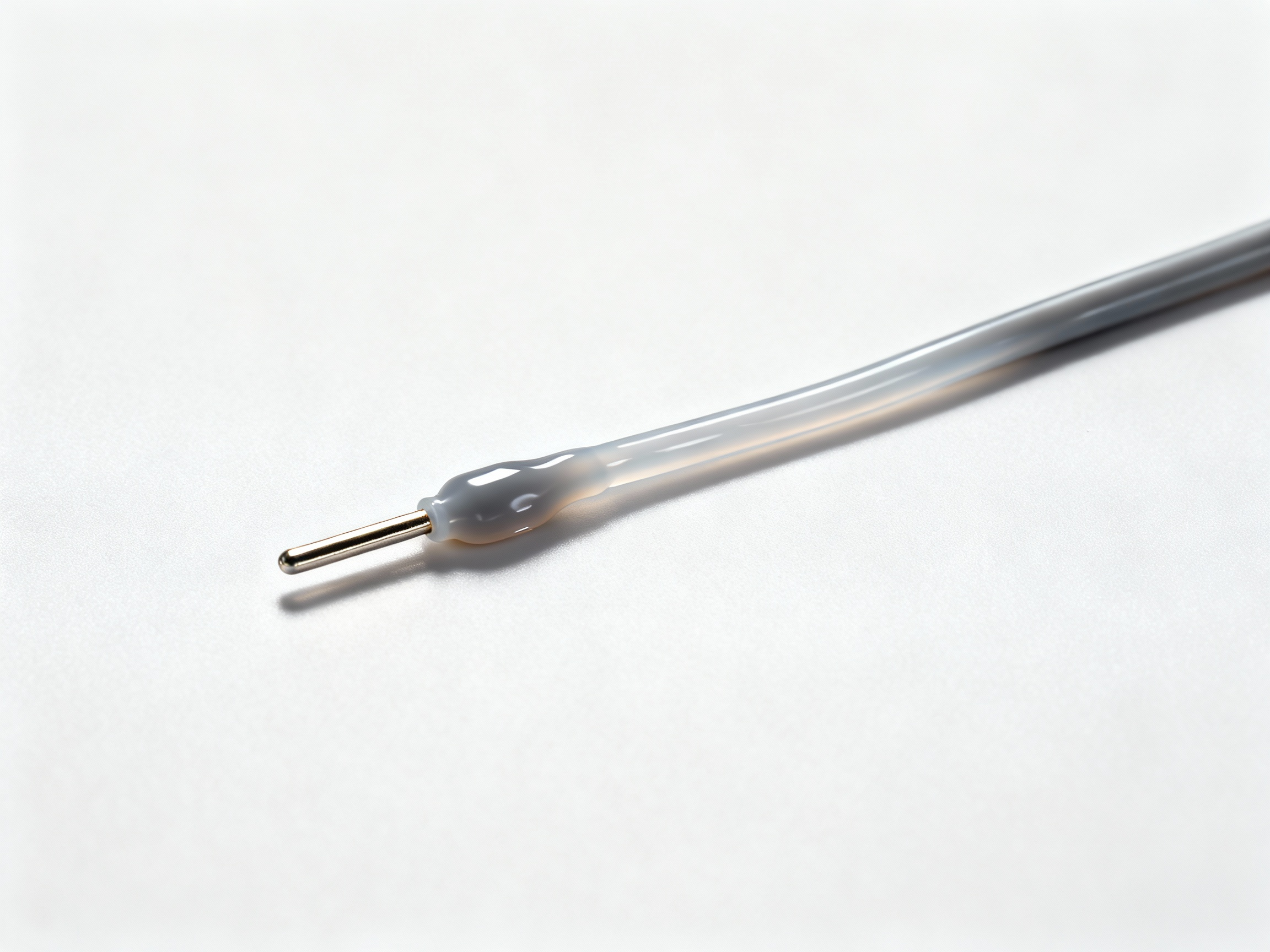

Formulating Biocompatible Conductive Matrices
Creating a conductive network within an insulating silicone matrix involves incorporating conductive fillers like carbon black, carbon nanotubes (CNTs), or silver-coated glass spheres. The goal is to reach the percolation threshold—the critical point where filler particles form a continuous path for electron flow—without compromising the material’s mechanical properties. For medical electrodes, a volume resistivity below 10 Ω-cm is often required. However, high filler loadings can drastically increase viscosity and reduce elongation.
Engineers must balance these trade-offs by selecting high-structure carbon blacks or high-aspect-ratio CNTs, which achieve conductivity at lower loadings . Biocompatibility is paramount; formulations must pass cytotoxicity and sensitization testing. Unlike standard injection molding liquid silicone rubber processes, conductive compounds require rigorous validation to ensure fillers do not leach into skin or react with body fluids during long-term wear.
Optimizing the Liquid Silicone Rubber Injection Molding Machine
Processing heavily filled conductive LSR presents unique challenges for the liquid silicone rubber injection molding machine. Conductive fillers are often abrasive, accelerating wear on standard screws and barrels. To prevent contamination and maintain dosing accuracy, manufacturers must utilize wear-resistant bimetallic screws or screws coated with tungsten carbide. A wear gap exceeding 0.06 mm can lead to backflow, causing inconsistent shot weights and varying electrical properties in the final part.
Furthermore, conductive materials typically exhibit higher thermal conductivity than unfilled silicone. This increases the risk of premature curing in the nozzle or cold deck. Precision cooling control is essential to maintain the material temperature below 25°C until it enters the heated mold cavity. Advanced process monitoring systems are also critical; they track injection pressure profiles to detect viscosity drifts caused by filler agglomeration, ensuring that every molded component meets the strict conductivity specifications required for reliable heart rate monitoring or haptic feedback data.
Livepoint Tooling: Custom Liquid Silicone Rubber Injection Molding Solutions
Livepoint Tooling specializes in high-precision manufacturing for the medical and automotive sectors. Our facility supports complex overmolding and cleanroom production, ensuring strict compliance with ISO standards for next-generation wearable devices and flexible electronic components.
Precision Manufacturing and Quality Assurance
Our capabilities extend beyond standard molding; we offer custom rubber injection molding services that include rigorous quality assurance protocols. For conductive parts, we implement in-line volume resistivity testing and non-contact vision inspection to verify dimensional stability without deforming flexible features. Operating within Class 7 and Class 8 cleanroom environments, we ensure that every medical component is free from particulate contamination. Whether you are developing a prototype smart patch or scaling up production for a mass-market health monitor, our engineering team optimizes cycle times and material usage to deliver cost-effective, high-performance results. By partnering with a specialized liquid silicone rubber injection molding company, you gain access to the technical expertise needed to push the boundaries of soft electronics.
