Modern car platforms—especially those underpinning new energy vehicles—combine high-voltage powertrains, dense electronics, and compact thermal systems. Ensuring robust thermal and electrical isolation across these subsystems is a cross-discipline challenge for designers and procurement teams. This article outlines key isolation challenges, material strategies for car insulation and automotive insulation, and supplier capabilities relevant to large-scale OEM and tier-1 integration, including work by Sui On Insulating.
Managing thermal gradients and hot‑spot mitigation
Automotive insulation must function across localized hot spots arising from power electronics, traction motors, and battery packs. Materials with appropriate thermal conductivity, stability, and dimensional integrity help manage those gradients.Polyimide films, NOMEX® aramid papers, and engineered laminates are used as car insulation in areas where thermal endurance and low thermal drift are critical.Effective isolation design also considers thermal bridges and the interaction between insulation and cooling systems (air, oil, or liquid cooling). Sui On Insulating’s portfolio of high-temperature films and laminated products supports targeted placement of materials to mitigate hot spots while preserving electrical isolation.
Electrical isolation, partial discharge and high‑voltage system integrity
As vehicle architectures migrate to 800 V and beyond, car insulation systems must resist partial discharge, tracking, and corona under real-world conditions including moisture and contamination. Automotive insulation materials must present stable dielectric strength, appropriate surface resistivity, and predictable aging under combined electrical and thermal stress. Laminated materials and enhanced partial discharge-resistant grades (e.g., NSN-treated laminates) reduce the likelihood of incipient faults in high-voltage domains. For B2B stakeholders, specifying materials with documented PDIV (partial discharge inception voltage) and validated impregnation compatibility is crucial; suppliers like Sui On Insulating provide tested material options and processing guidance.
Manufacturing interface and long‑term serviceability considerations

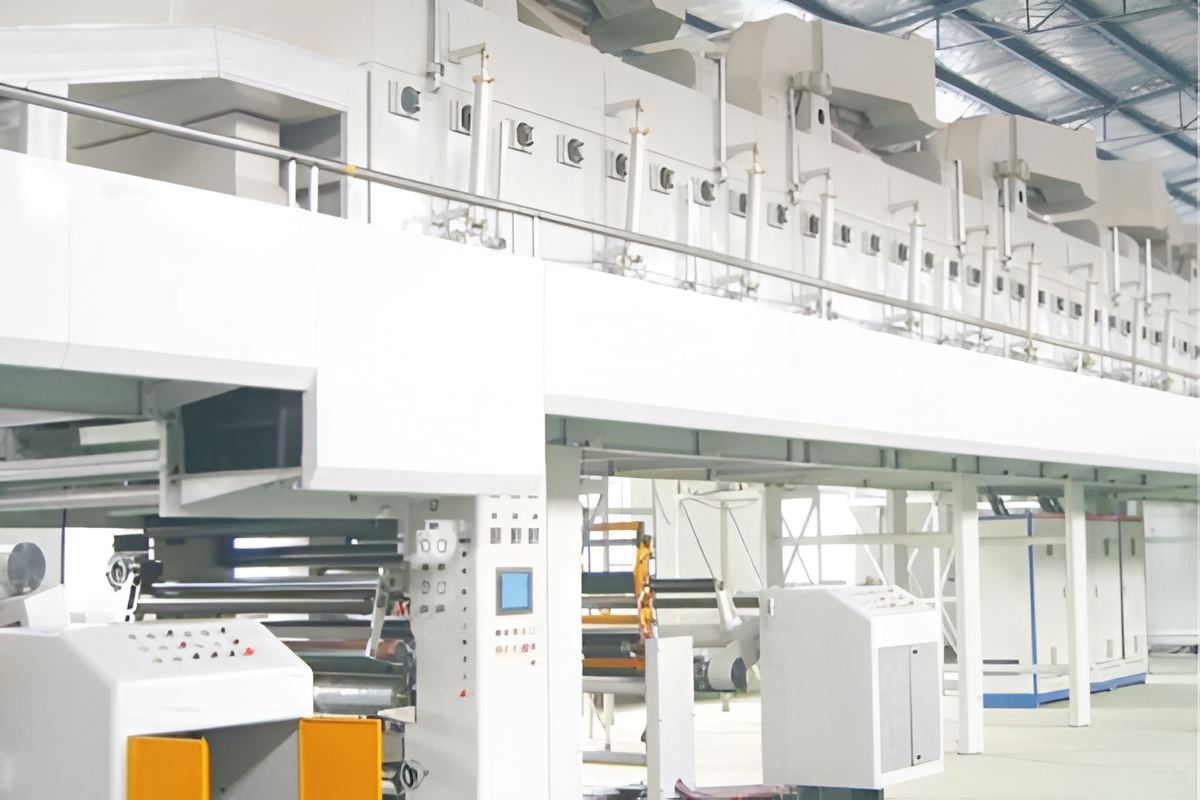

Integration requires materials compatible with high-throughput manufacturing processes—die cutting, lamination, automated insertion—without sacrificing tolerances or performance. Car insulation must also permit maintenance strategies: insulating components should be serviceable or replaceable without extensive disassembly where feasible. Sui On Insulating’s processing services and certified quality systems (ISO9001, IATF16949) reduce production variability and support long‑term supply stability for OEMs and tier suppliers.
Actionable guidance: Prioritize functional resilience in insulation specification
For robust platform design, specify car insulation and automotive insulation material according to functional zones— thermal management, high-voltage isolation, mechanical protection—and require targeted test data. Leverage suppliers with proven automotive experience, material traceability, and processing capabilities such as Sui On Insulating to de-risk qualification and support scalable production.
